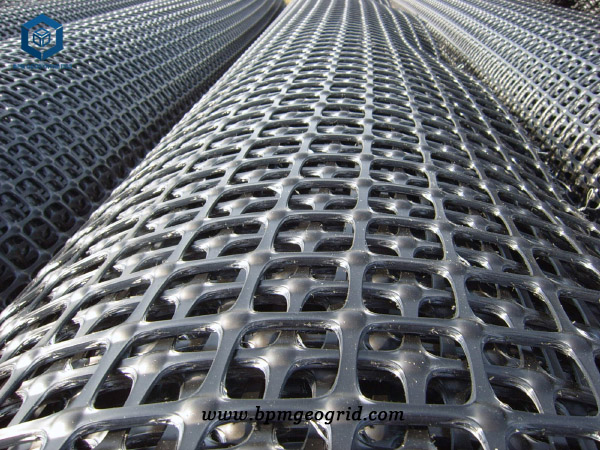

PP biaxial geogrid fabric for roads is made from PP resin as its raw material, produced through extruding, punching, heating, longitudinal stretching, transverse stretching processes. PP biaxial geogrid fabric for roads is an integrally formed structure, which especially designed for soil stabilization and reinforcement applications, especially for road construction project. PP biaxial geogrid fabric has the following features.
- High tensile strength at both longitudinal and transverse direction.
- High tension resistance,high plane torsion resistance modulus,good creep resistance and stable chemical nature.
- High mechanic damage resistance and durability and large friction factor with sandy stone.
- Improve bearing force of foundation and increase diffusion angle.
- Main type: 15-15, 20-20, 25-25, 30-30, 40-40, 50-50
BPM Thailand customer had a road construction project for local government. He called us and sent more detail of PP biaxial plastic geogrid for roads design. BPM suggested using plastic geogrid 30-30 for road construction by checked the drawing and calculated the use quantity and the order quantity happened to be one 40HQ container. After we sent our technical data for geogrid fabric and samples, we got Thailand customers’ email about PO for PP biaxial plastic geogrid based on one full 40HQ container. We sent client installation details as below:
When the PP biaxial geogrid fabric is used for roadbeds and road construction, it needs to excavate the foundation bed, set up a sand cushion (with a height difference of not more than 10cm), roll it into a flat surface, and the lay the geogrid fabric. The longitudinal axis should be consistent with the main force direction. The longitudinal overlap should be 15- 20cm and horizontal overlap 10cm, and then lap joints are bound with plastic tape, and fixed to the ground with U-shaped nails every 1.5-2m when laid PP plastic biaxial geogrid.The laid plastic geogrid should be backfilled with earth material in time.

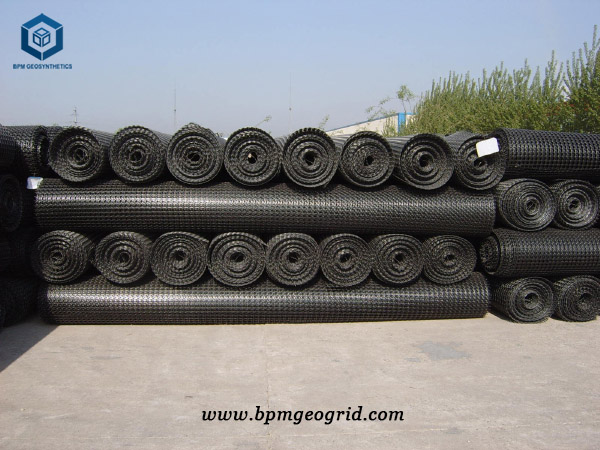

Specifications of PP Biaxial Geogrid Fabric for Roads Construction in Thailand
- Total PP geogrid fabric quantity – 26,267 square meters
- Geogrid specification – 30-30
- Each roll size – 3.95m*50m
About BPM
BPM manufactures and supplies many types of effective and state of the art geogrid, geomembrane, geotextile, and geosynthetics to over 36 countries. Our main innovative, high quality geosynthetics products include geomembrane, geotextiles, geocell, geosynthetic clay liners (GCLs), drainage boards, etc. BPM brand brand high quality geosynthetic products had been certificated by the ISO9001, ISO14001,OHSAS18001 Soncap, SASO and BV, SGS and Intertek, etc.
