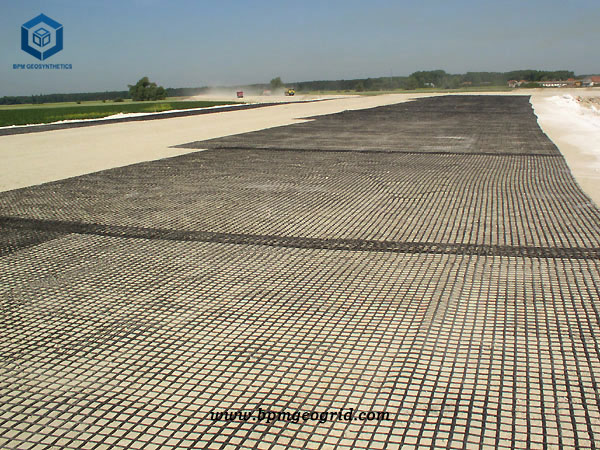

Plastic biaxial geogrid is the kind of geosynthetic material which is widely used to reinforce retaining walls, as well as subbases or subsoils below roads or structures. Plastic biaxial geogrid is often made from plastic materials which may be high-density polypropylene or high-density polyethylene (HDPE) resins through the processes of extruding, sheet forming, punching and stretching. Compared with uniaxial plastic geogrid, biaxial plastic geogrid has high tensile strength and excellent tensile modulus in both longitudinal and transverse direction, so the plastic biaxial geogrid can offer superior stiffness, high strength at low strain, aperture stability and interlock capabilities, maximum bearing capacity and shear resistance for for structural reinforcement of paved and unpaved roads. BPM brand plastic biaxial geogrid can be used as soil reinforcement below roads, under structures, behind retaining walls, pavement overlays reinforcement, strengthening soft ground of highway, railway, slope protecting projects and airfields, it can also enhance soil structure, prevent soil erosion, increase stability and loading capacity of foundation, prolong the project life.
Plastic Biaxial Geogrid Specifications
| Item | TGSG15-15 | TGSG20-20 | TGSG25-25 | TGSG30-30 | TGSG35-35 | TGSG40-40 | |
|---|---|---|---|---|---|---|---|
| Tensile Strength (kN/m) | Longitudinal | ≥15 | ≥20 | ≥25 | ≥30 | ≥35 | ≥40 |
| Transverse | ≥15 | ≥20 | ≥25 | ≥30 | ≥35 | ≥40 | |
| Elongation Rate (%) | Longitudinal | ≤13 | ≤13 | ≤13 | ≤13 | ≤13 | ≤13 |
| Transverse | ≤16 | ≤16 | ≤16 | ≤16 | ≤16 | ≤16 | |
| Strength at 2% elongation (KN/m) | Longitudinal | ≥5 | ≥8 | ≥8 | ≥11 | ≥12 | ≥13 |
| Transverse | ≥7 | ≥10 | ≥11 | ≥13 | ≥14 | ≥15 | |
| Strength at 5% elongation (≥KN/m) | Longitudinal | ≤8 | ≤10 | ≤11 | ≤15 | ≤15 | ≤16 |
| Transverse | ≤10 | ≤13 | ≤13 | ≤15 | ≤18 | ≤20 | |
Plastic Biaxial Geogrid Features
- High tensile strength in both directions
- Excellent tensile modulus
- Higher load bearing capacity
- Excellent soil stabilization
- Good sub-base reinforcement
- Heavy duty foundation support
- Anti-corrosion, erosion control
- Good aperture stability
- High junction efficiency
- Reduce sub-excavation
- Decrease aggregate fill thicknesses
- Simplify construction, fast deployment
- Suitable for any weather conditions
- Land optimization and land utilization properly
- high durability, long service life
- Custom fabrication available
Plastic Biaxial Geogrid Applications
Plastic biaxial geogrid is the ideal geotechnical material in situations where stresses are applied in two directions, it is the ideal geotechnical product used to reinforce the pavement base and improve the subgrade for any soil stabilization and reinforcement applications such as municipal roads, highways railway, access roads, parking lots industrial shipping yards, etc. provides high strength, high performance, longer life, ensured reliability and quick installation for base reinforcement of paved roads, construction haul roads, foundation reinforcement, permanent unpaved roads, working platforms on weak soils, parking areas, etc.
About BPM
BPM has been manufacturing and supplying one stop geogrid products and solutions to worldwide customers since its foundation in 2007. BPM had provided many types of effective and state of the art geosynthetics such as geogrids, geomembranes, geotextiles, geocells, geosynthetic clay liners (GCLs), drainage boards to over 36 countries. Our customers are from Australia, France, Sweden, UK, Hong Kong, Hungary, New Zealand, Poland, Mexico, Ecuador, Brazil, Pakistan, Bangladesh, Thailand, Vietnam, Malaysia, Indonesia, Singapore, Philippines, Sri Lanka, India, UAE, Saudi Arabia, Qatar, Kenya, Ghana, Ethiopia, Somalia, Nigeria, South Africa, Swaziland, Mongolia etc.
BPM is not only manufacturing best quality geogrid products but also providing professional design and installation service. OEM, ODM and custom fabrication are also available. If you have any questions or inquiries, please fill and submit the following form, we will reply as soon as possible.
